3047 sq ft 4-Bedroom House Plan – Permit Ready

A 3047 sq ft two-story family residence with separated common and private floors, configured around clear public/private zoning. The plan configures 4 bedrooms and 3.5 baths across the floor plate. Practical for households that want clear zoning between common and private spaces, and for sites where preserving outdoor area drives the building shape. The plan includes a 2-car garage, a dedicated home office, a fireplace, a swimming pool, and a covered porch.

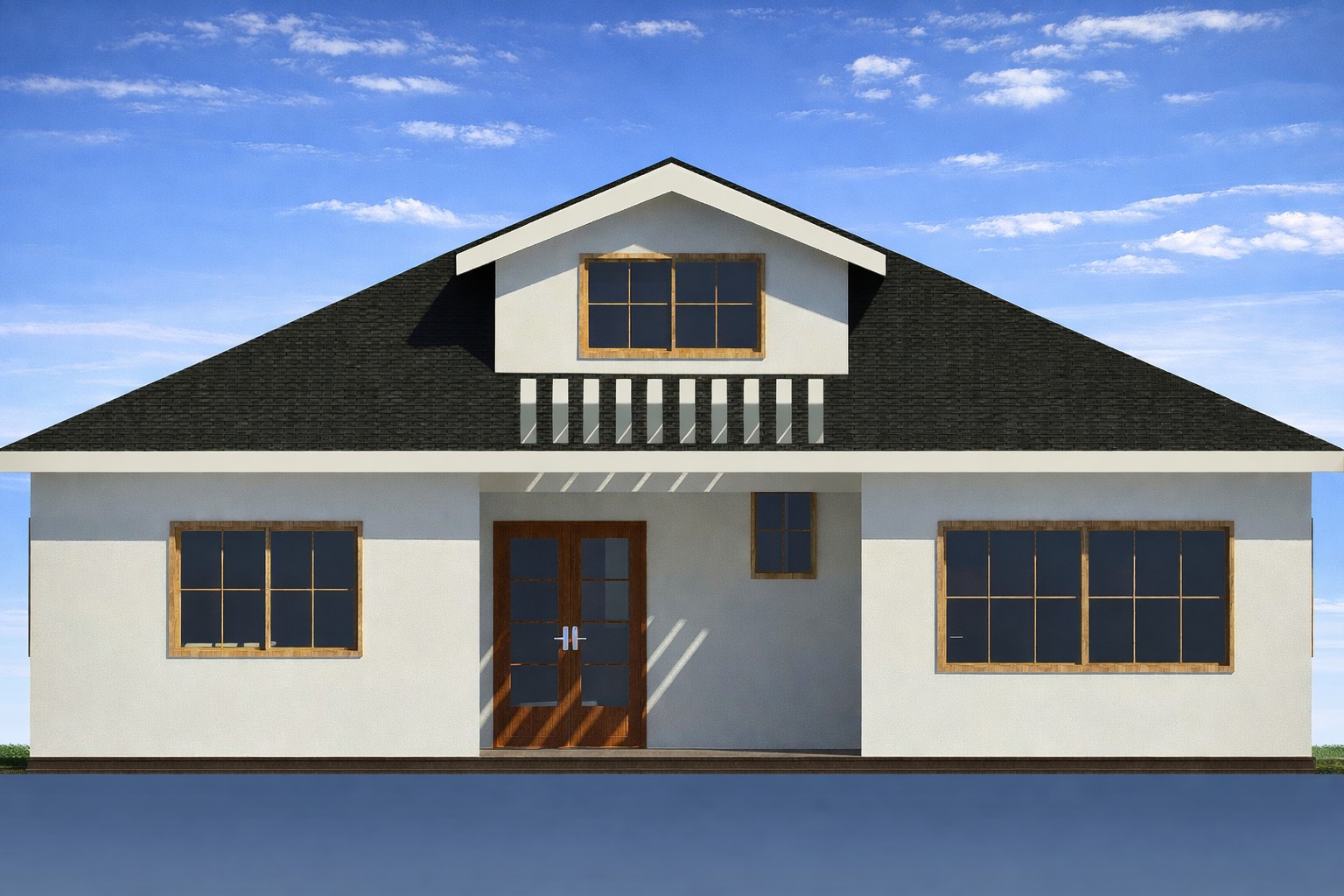

Front 3D isometric rendering of a 3047 sq ft 4-bedroom 2-story house plan in California — Exterior rendering of the 3047 sq ft permit-ready house plan with a modern two-story layout.

Plan H24-3047 Specifications

Living area	3,047 sq ft
Bedrooms	4 Bedrooms
Bathrooms	3.5 Bath
Stories	2-Story
Ridge height	18 ft
Ceiling height	8.5 ft
Roof slope	4:12
Office	154 sq ft
Garage	400 sq ft (2-car)
Covered porch	286 sq ft
Fireplace	Yes
Pool	Yes

Code & Engineering

This 3047 sq ft 4-bedroom two-story house plan is delivered as a permit-ready architectural set, developed for R-3 single-family occupancy under the California Residential Code and adaptable to other Western US jurisdictions.

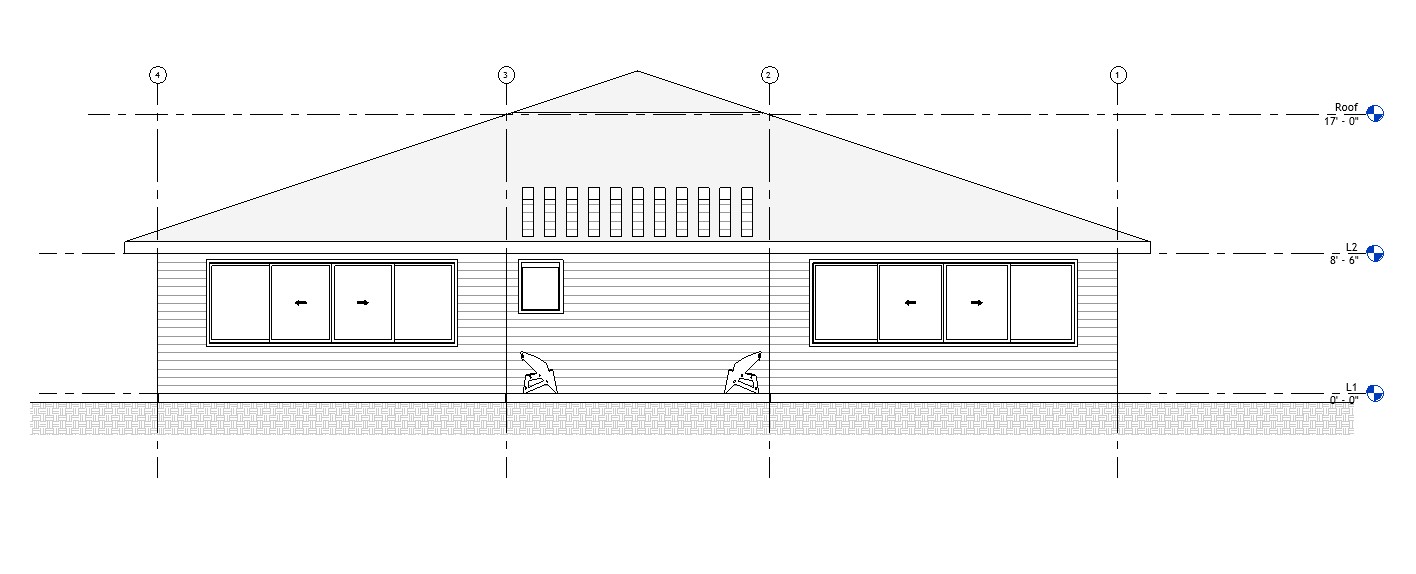

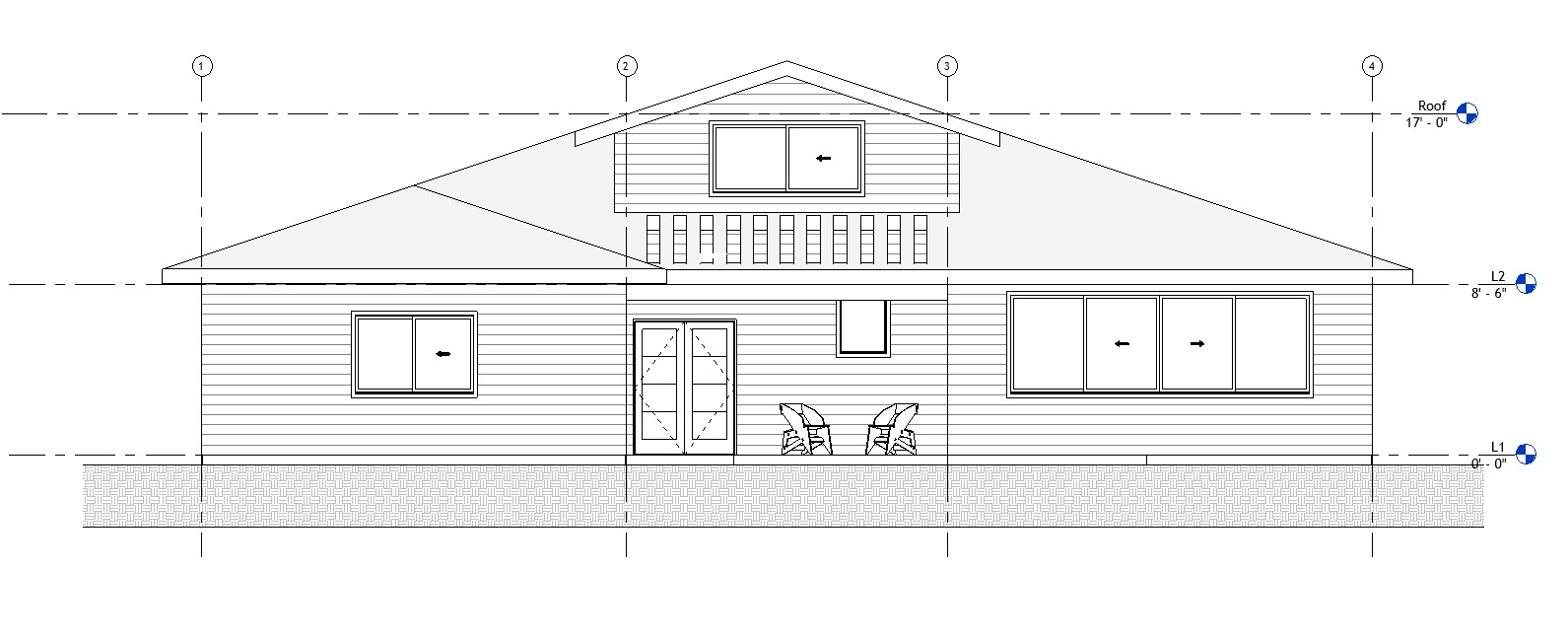

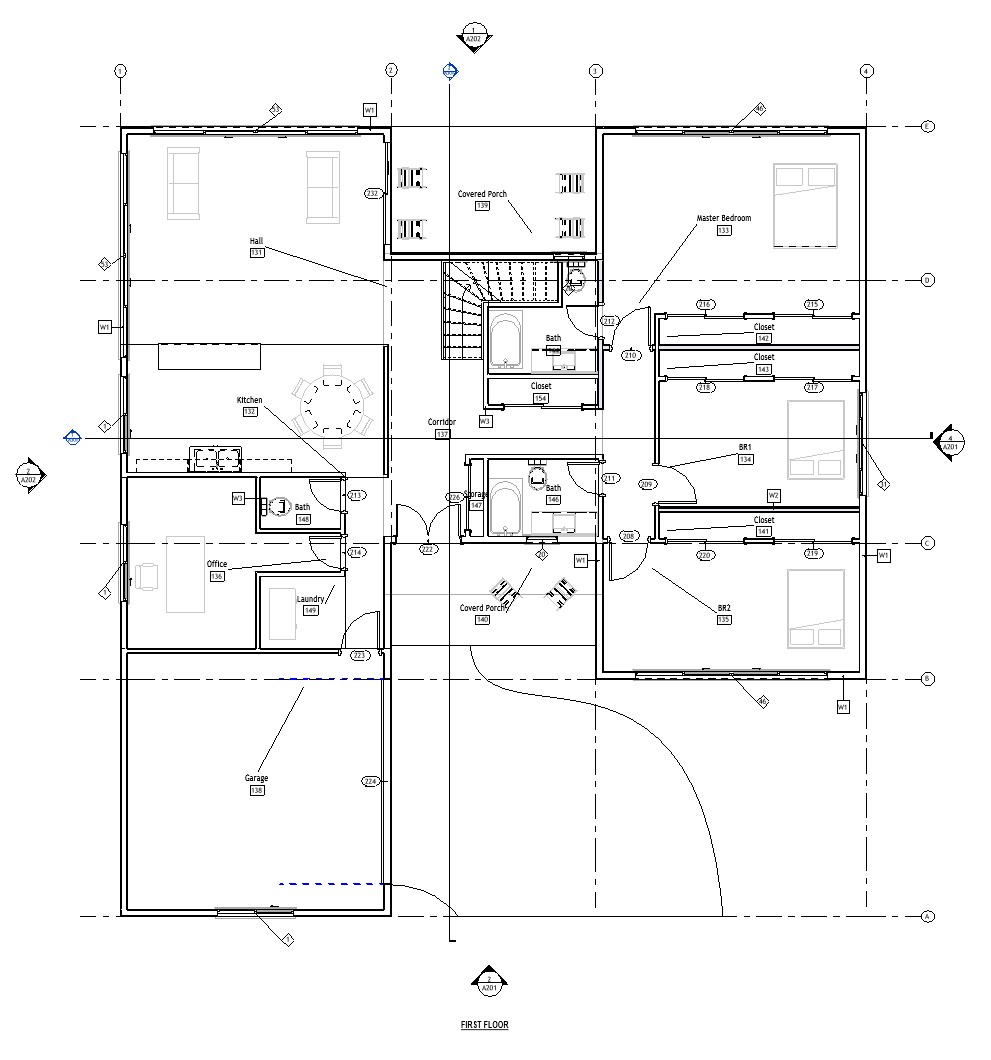

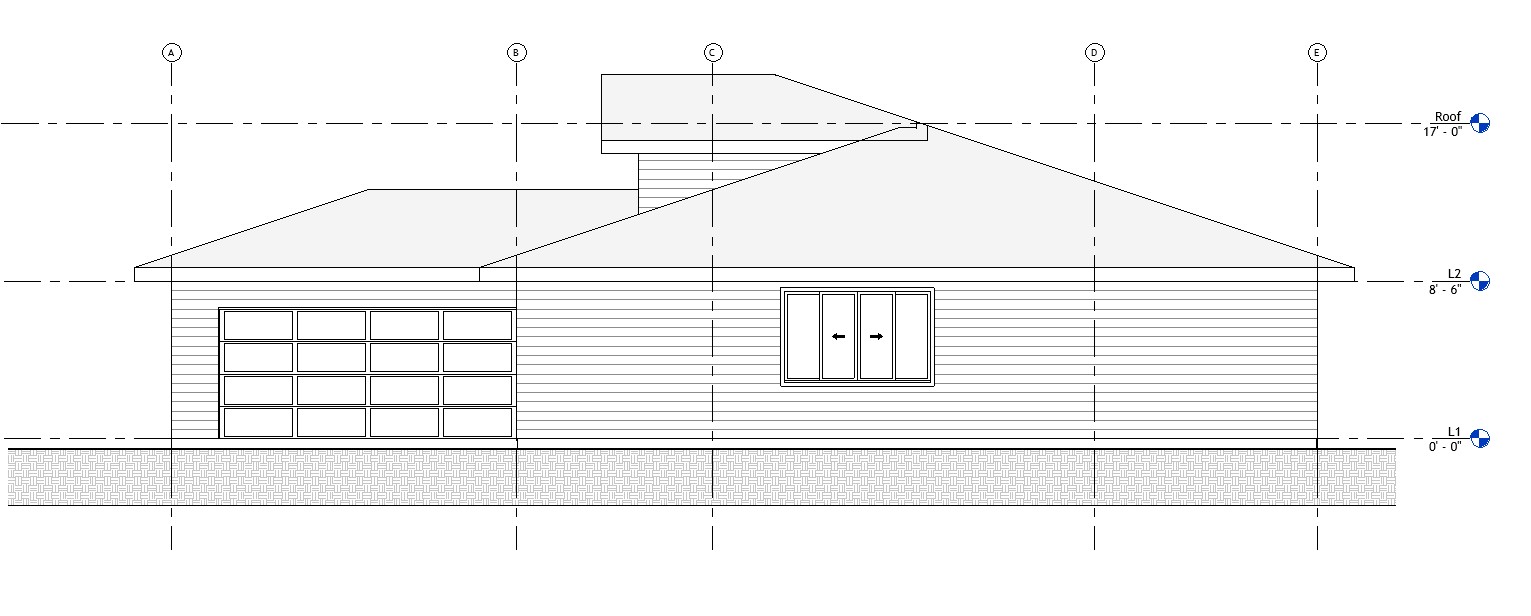

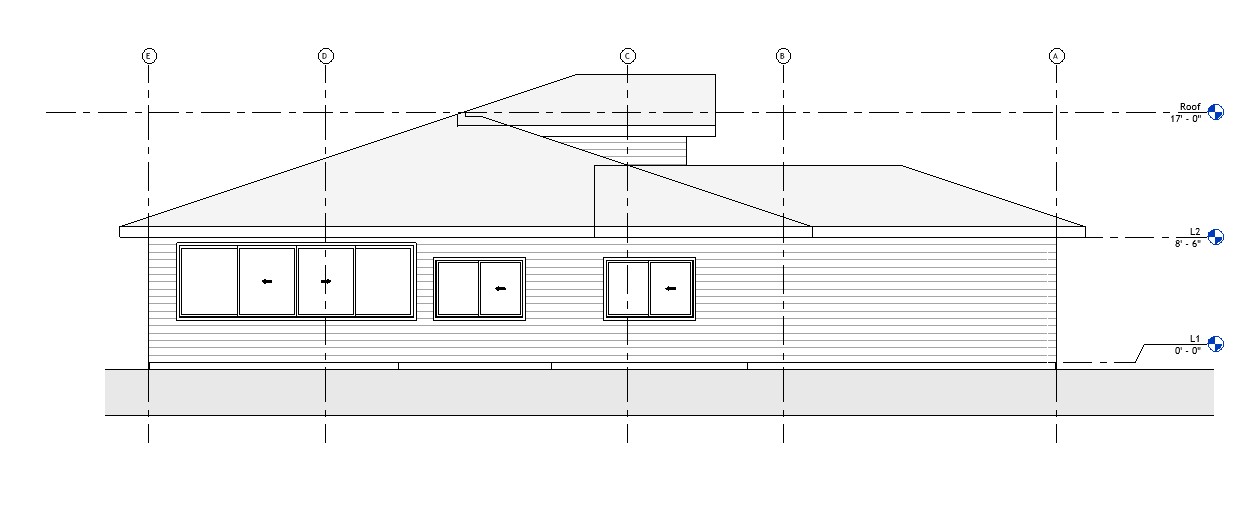

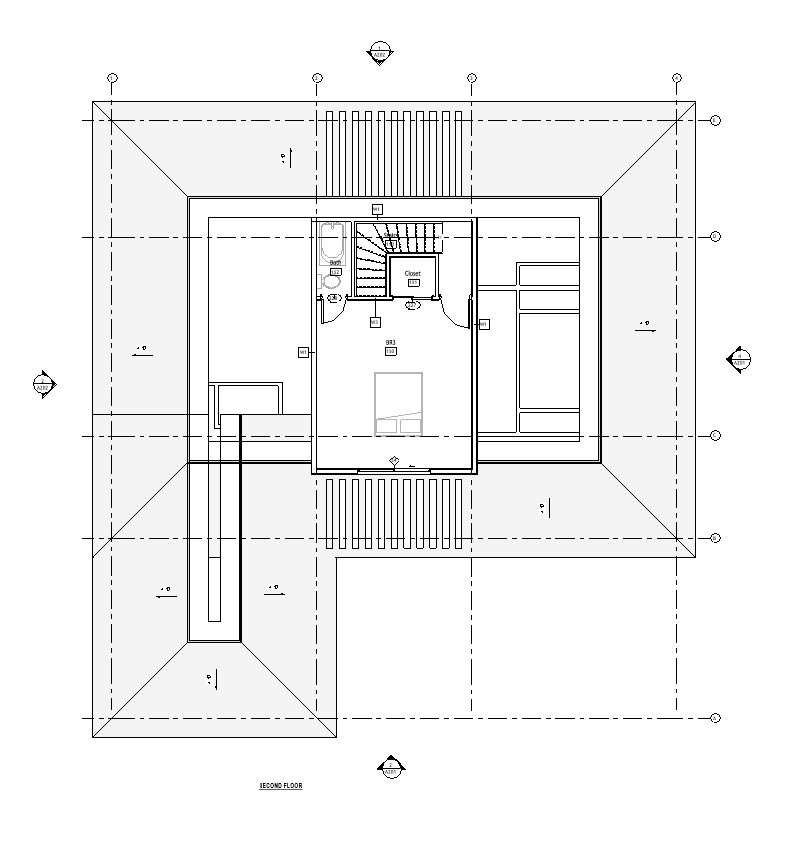

Architectural deliverables include the floor plans for both stories, four-sided exterior elevations, building cross-sections, and dimensioned framing intent for the roof and floor systems. The design is developed against the current California Residential Code (CRC) with structural detailing intended to follow ASCE 7 and the NDS for wood members.

The Structural Set package is offered as a separate scope and includes lateral analysis, gravity load takedown, shear-wall design, and component-level connection details — all sized to the specific site's seismic and wind conditions rather than to a generic California average.

The foundation system is selected during a separate site-specific design scope. Slab-on-grade is the default for level, well-drained parcels; raised crawl-space on continuous stem walls is the choice on expansive-clay or high-moisture sites; pier-and-grade-beam systems handle hillside lots and soft-soil regions where the geotechnical report calls for deeper bearing.

As a single-family residence (R-3 occupancy), this plan is subject to local zoning height limits — typically 25 to 35 feet in California residential zones, though specific limits vary by jurisdiction and any applicable hillside, fire-zone, or coastal overlays. The plan's 18 ft ridge height should be verified against the parcel's zoning before submitting for permit. If the ridge needs to be lowered for a specific overlay, HOA restriction, or view-corridor easement, plan customization is available to adjust the roof slope or elevation accordingly.

Available optional services: PE-stamped structural calculations, plan customization for site-specific adaptations (roof slope, elevation, interior layout), custom foundation design sized to the geotechnical report, structural observation visits during framing and finish, and permit support tailored to jurisdiction-specific requirements.
