1008 sq ft ADU Plan – Permit Ready

A vertical 1008 sq ft two-story ADU with two bedrooms, sized to preserve outdoor space on infill parcels in dense California neighborhoods. The layout configures 2 bedrooms and 1.5 baths within a clean, code-aware envelope. Strong fit for multi-generational households where the floor separation creates real privacy between household zones. The plan includes a covered porch.

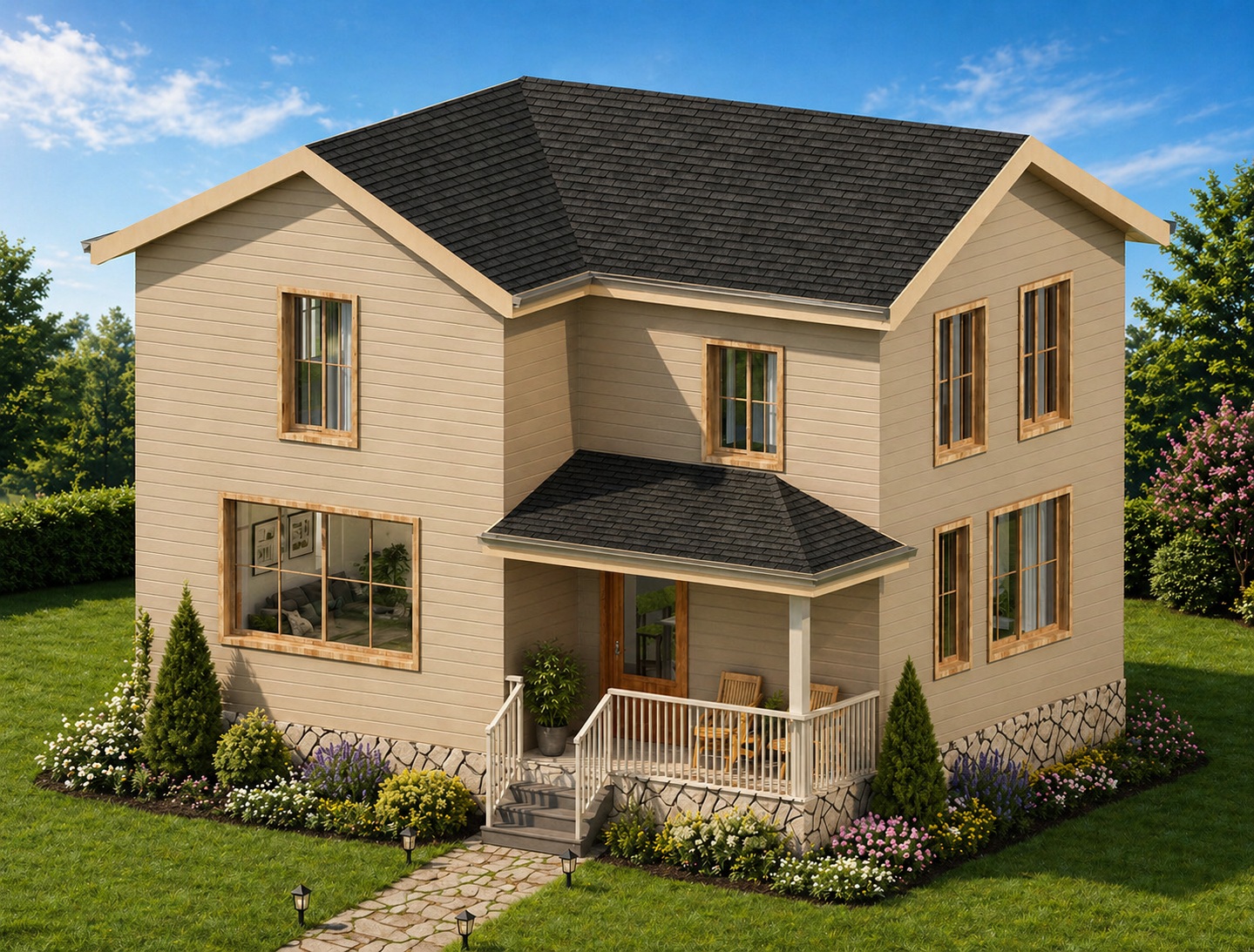

Front 3D isometric rendering of a 1008 sq ft 2-bedroom 2-story ADU plan in California — Exterior rendering of the 1008 sq ft permit-ready ADU plan designed as a detached backyard cottage.

Plan A22-1008 Specifications

Base area	1,008 sq ft
Bedrooms	2 Bedrooms
Bathrooms	1.5 Bath
Stories	2-Story
Ridge height	21.16 ft
Ceiling height	8.5 ft
Roof slope	6:12
Covered porch	59 sq ft

Code & Engineering

This 1008 sq ft 2-bedroom two-story ADU is delivered as a complete architectural plan set for permit-ready construction in California, developed against the requirements of Government Code §65852.2 and the supporting provisions in §65852.22.

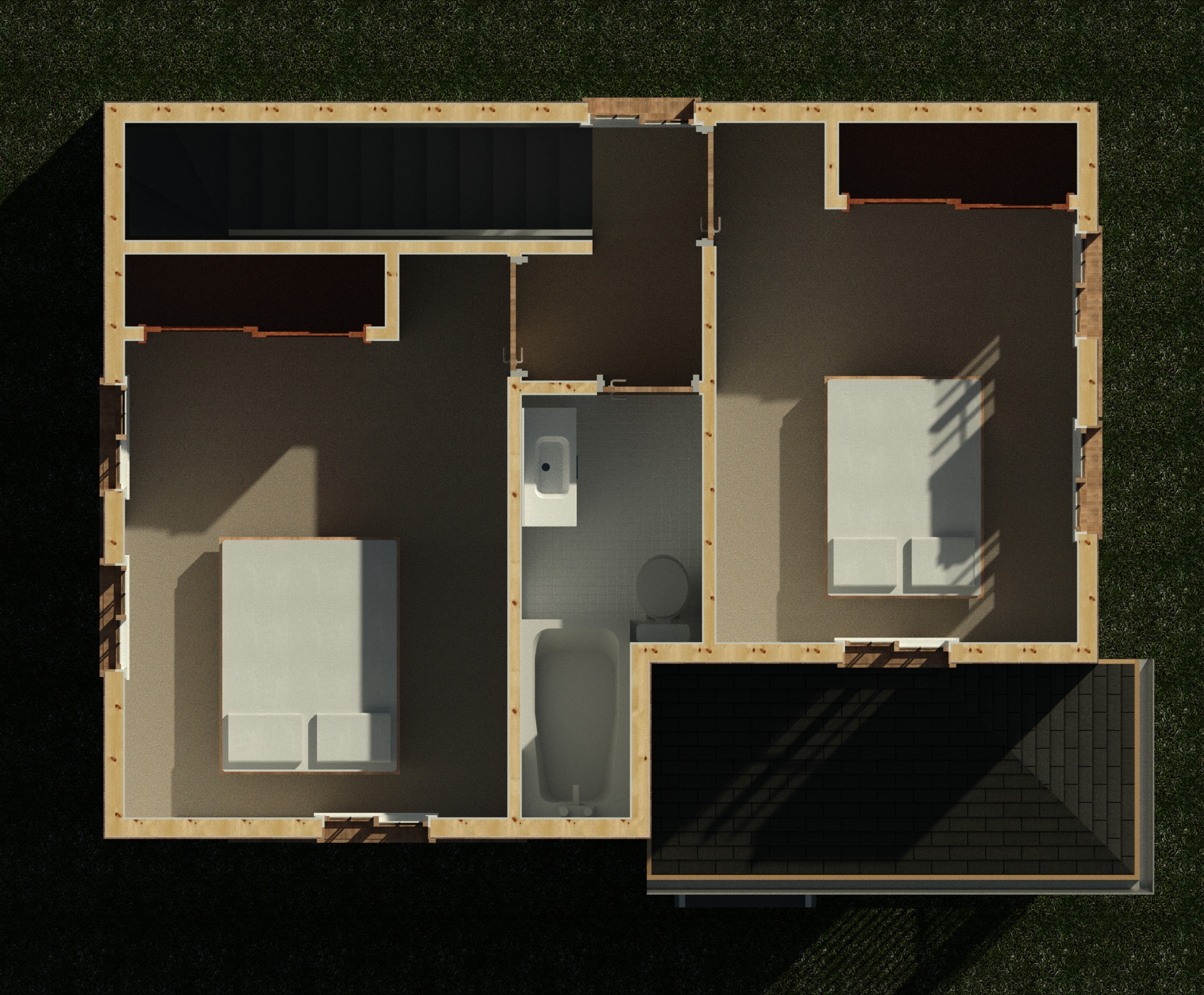

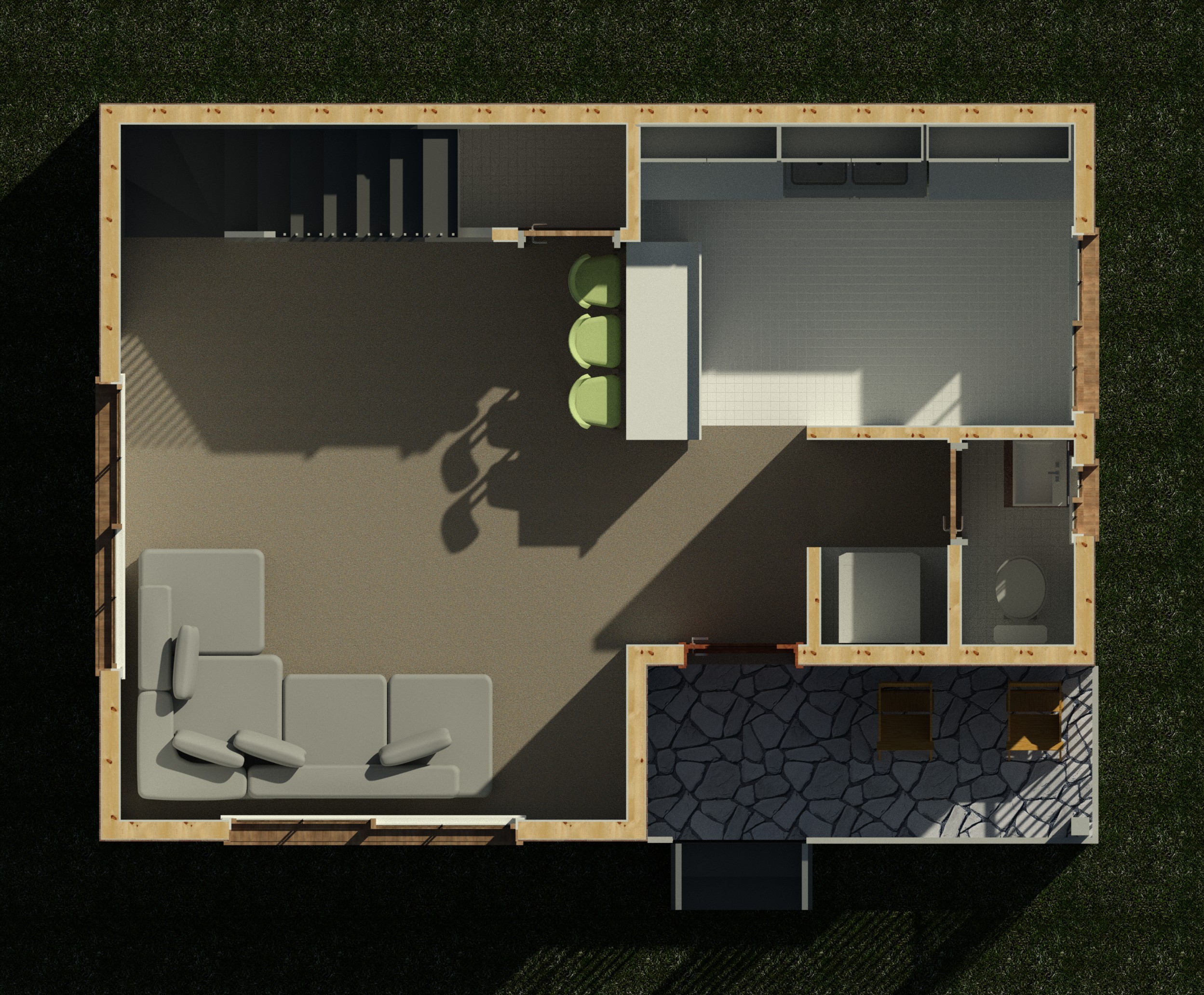

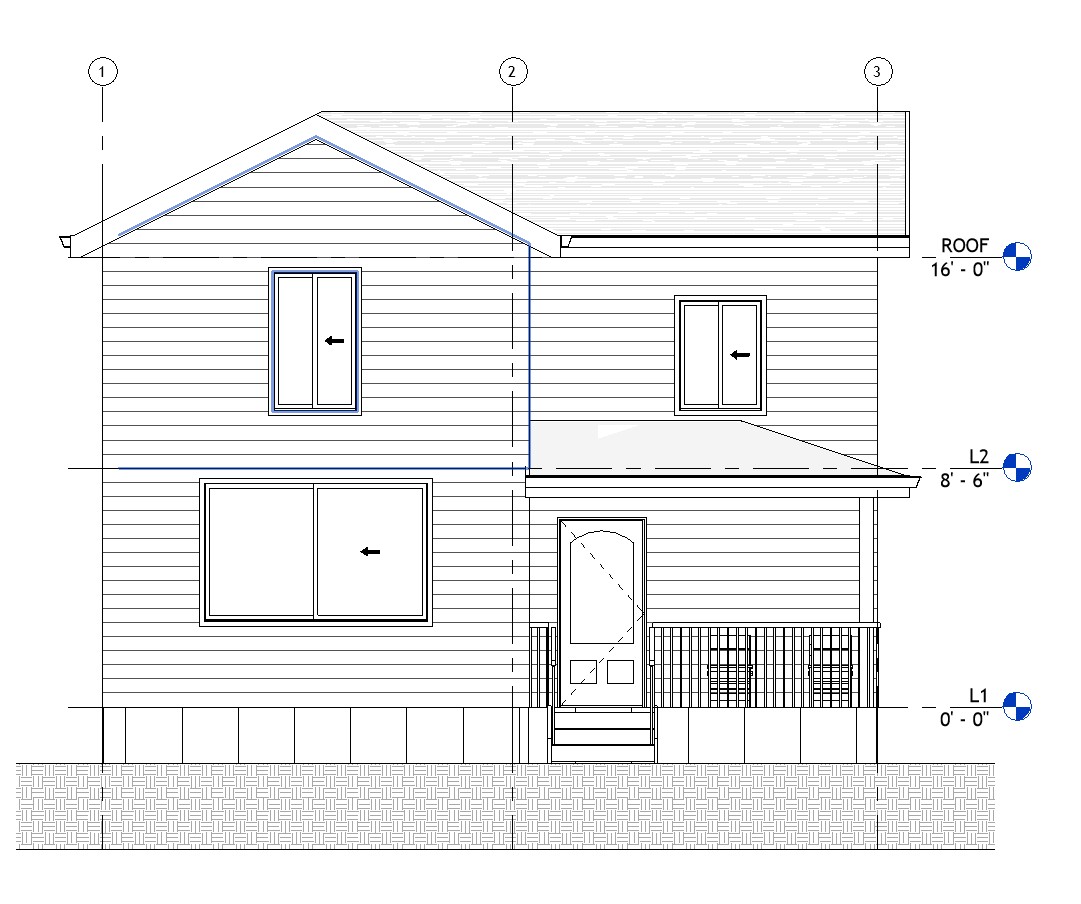

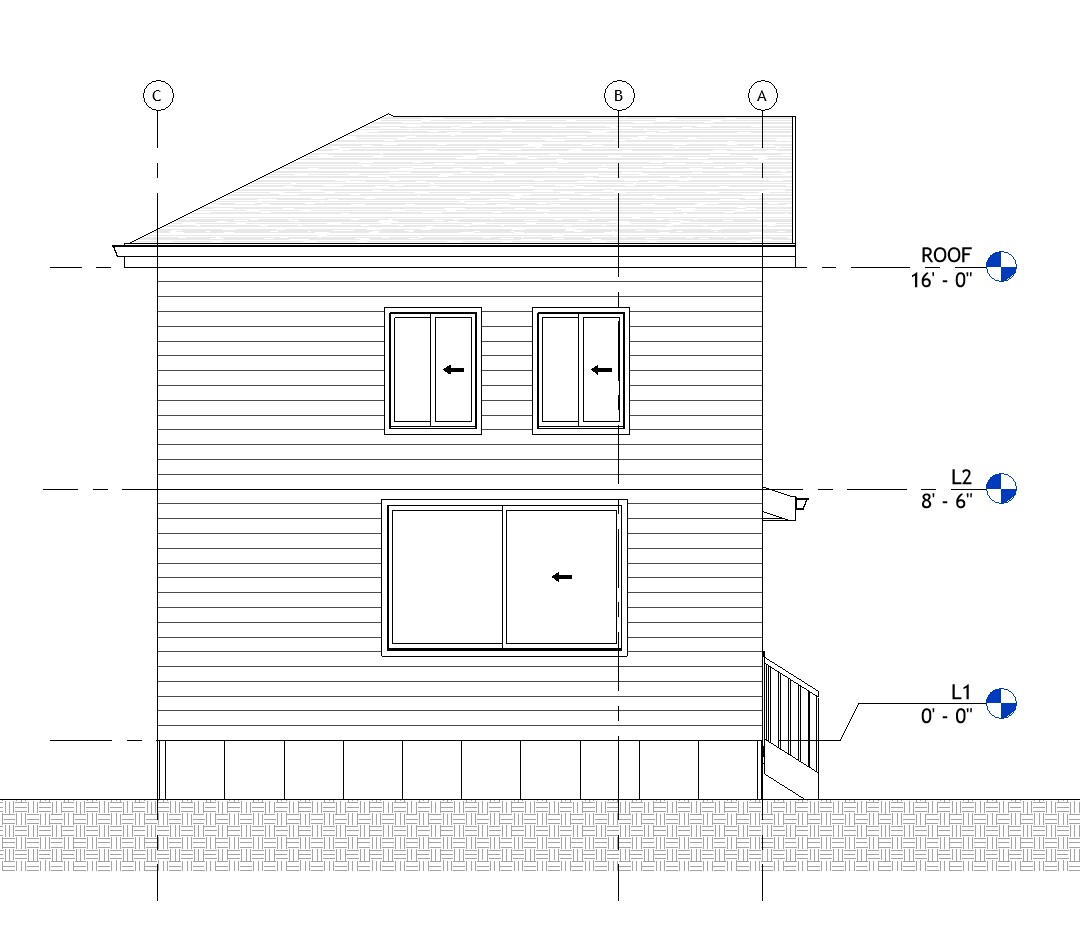

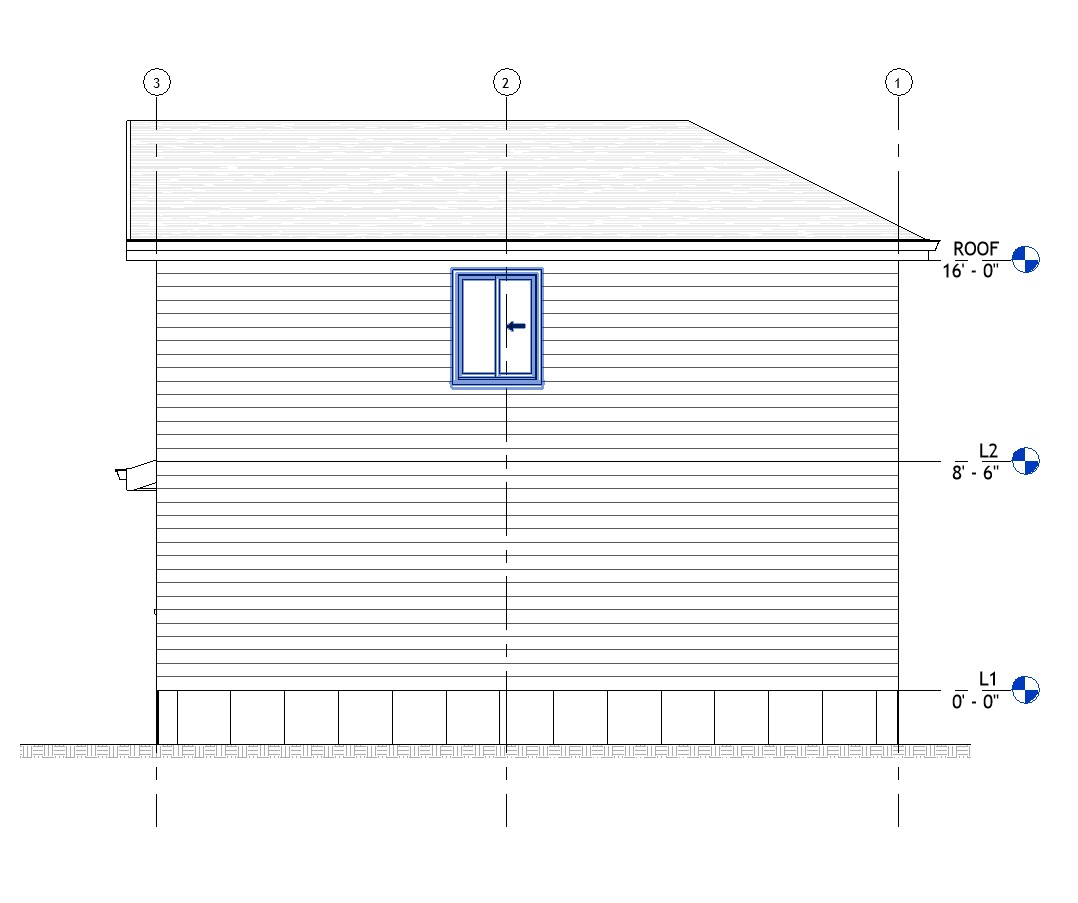

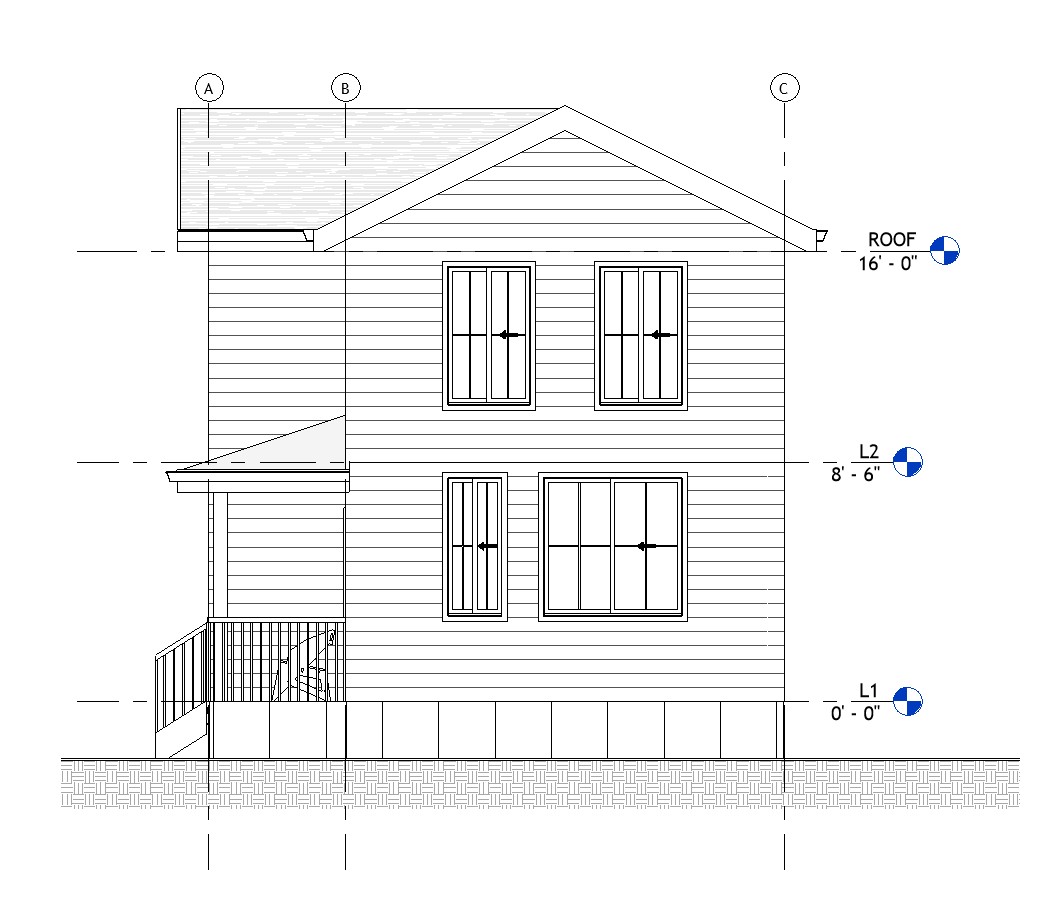

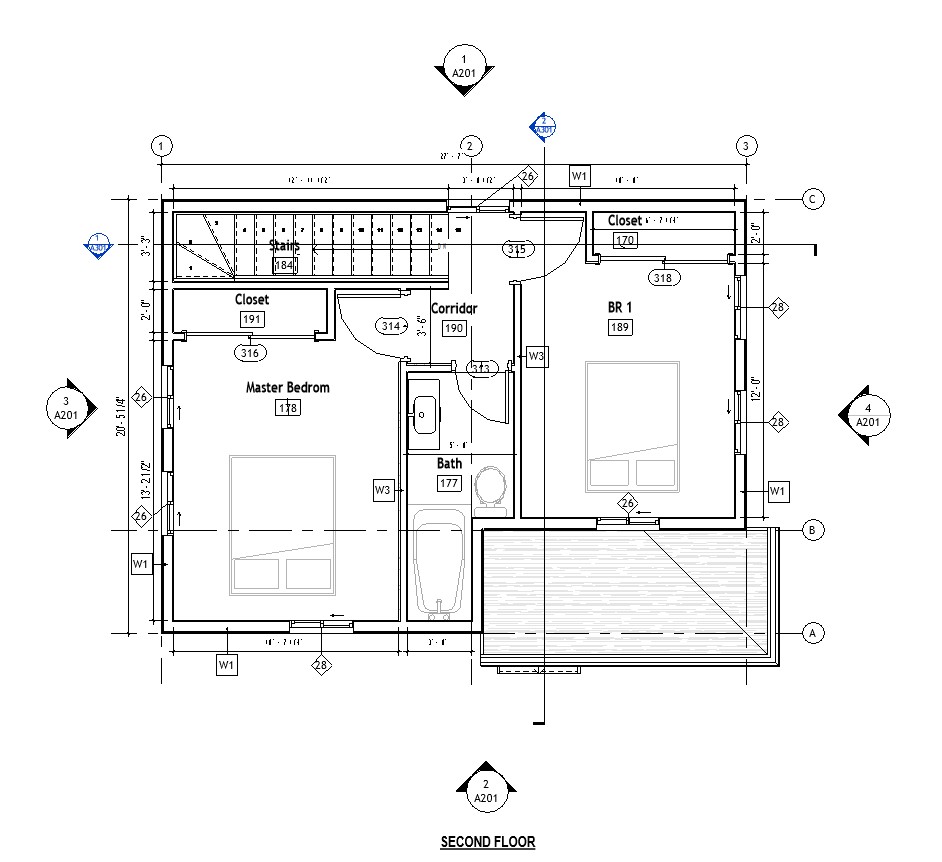

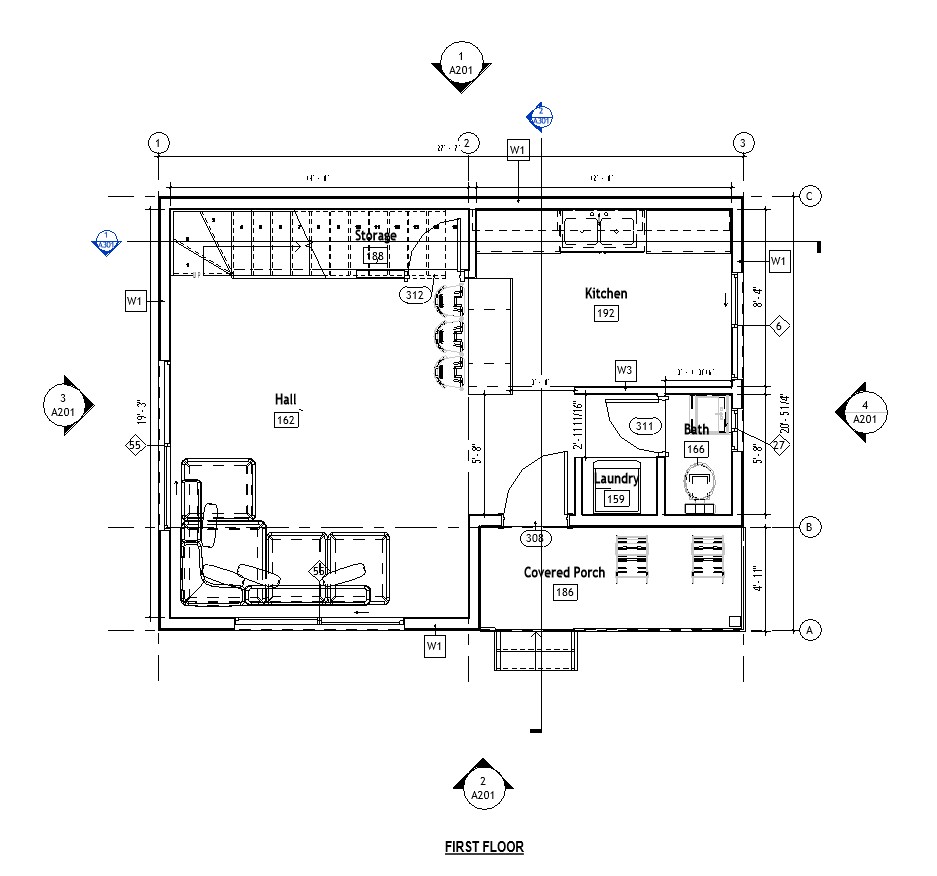

Architectural deliverables include the floor plans for both stories, four-sided exterior elevations, building cross-sections, and dimensioned framing intent for the roof and floor systems. The design is developed against the current California Residential Code (CRC) with structural detailing intended to follow ASCE 7 and the NDS for wood members.

The Structural Set package is offered as a separate scope and includes lateral analysis, gravity load takedown, shear-wall design, and component-level connection details — all sized to the specific site's seismic and wind conditions rather than to a generic California average.

Foundation design is provided as a separate scope to match the right system to each site. Common alternates include slab-on-grade for stable parcels, shallow crawl-space on stem walls for expansive-clay or moisture-prone sites, and pier-and-grade-beam systems for hillside lots, soft soils, or any site where the geotechnical report identifies a need for deeper bearing.

The plan's 21.16 ft ridge height exceeds California's standard 16-foot detached-ADU limit and the 18-foot transit-served / multifamily-zoned allowance. Several adaptations are available depending on your parcel: plan customization to lower the roof slope or revise the upper-floor elevation so the ridge fits the applicable height limit; configuration as an attached ADU where height matches the primary dwelling up to 25 feet; use as a small single-family residence in a zone permitting two-story construction; or permitting on parcels where local jurisdictional provisions allow greater height for detached secondary units. Plan customization is offered as an optional design service to adapt the plan to a specific parcel.

Optional add-on services include PE-stamped structural calculations, plan customization (roof slope adjustments, elevation revisions, layout modifications), custom foundation design tailored to the soils report, on-site structural observation during construction, and permit support for jurisdictions with non-standard plan-check comments.
